Wastegate, 60mm Black Top

WG-60-0 - Wastegate, 60 mm Black Top

The Racetronix® WG-60 60mm wastegate measures 5.9" high. This Racetronix wastegate also features one M10x1.0 top air port and one bottom air port. The Inconel (NiCrFe) valve, Nitronic 60 valve guide + seat and lower 347 stainless steel housing are constructed from high temperature alloys for their unique combination of high corrosion, wear and galling resistance properties (prevents sticking). The top actuator housing is CNC machined from lightweight T6-6061 billet aluminum which is available in a range of anodized colors. All Racetronix wastegates are designed to optimize actuator-to-valve area ratio to provide maximum control and a wide dynamic flow capacity utilizing a fibrous Boron silicone diaphragm and o-ring seal for high-temperature handling and long life.

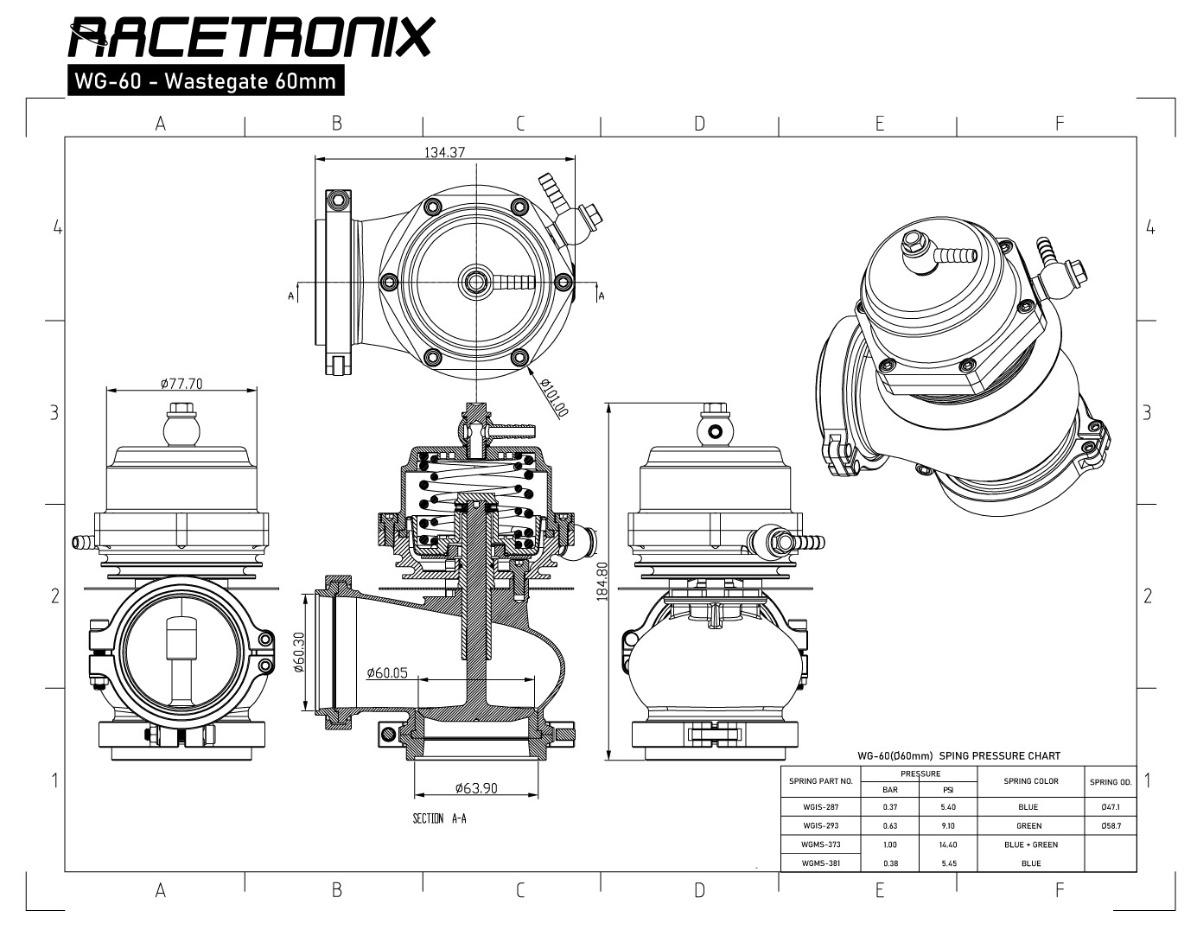

Racetronix utilizes 304 stainless steel v-band connections and includes both inlet and outlet mating flanges and clamps. The 304 stainless steel flanges feature chamfered edges and are counter-bored to make welding simpler. Each wastegate also includes two pre-installed actuator springs. Please see the spring/pressure chart below and optional springs listed under add-ons. All Racetronix springs are manufactured from 17-7 PH stainless steel for consistent pressure delivery, even at high temperatures.

Racetronix® WG-60 60mm Wastegate Features:

• Large Format Design (5.9" Tall)
• Air Ports - 1 Lower, 1 Upper (includes two M10x1.0 T6 +SS banjo to barb adapters)
• 347 Stainless Steel Valve Housing
• T6-6061 Billet Anodized Aluminum Actuator Housing
• 304 Stainless Heat Shield
• 304 Stainless Steel V-Band Inlet and Discharge Flanges
• 304 Stainless Steel V-Band Inlet and Discharge Clamps
• Inconel High-Temperature Alloy Racing Valve w/ Coated Stem (protects from leaded fuel)
• High-temperature Fibrous Boron Silicone Reinforced Actuator Diaphragm
• 7-7PH Stainless Steel Actuator Springs
• Nitronic 60 Stainless Steel Valve Seat
• Nitronic 60 Stainless Steel Valve Guide

Racetronix WG-60 Wastegate Flange Counterbore Sizes:

• Inlet: 2-1/2" OD Tubing (2.5")
• Discharge: 2-3/8" OD Tubing (2.375")

What's Inside the WG-60 Box:

• WG-60 Wastegate Assembly (WGIS-293 (9.1PSI) Spring Pre-Installed)
• 304SS Inlet V-Band Clamp (WG-IBVA60) with 304SS Inlet V-Band Flange (WG-WIF60)
• 304SS Outlet V-Band Clamp (WG-EBVA60) with 304SS Outlet V-Band Flange (WG-WEF60)
• Valve Seat (WG-IVS60)
• Two M10x1.0 Banjo to Hose Barb Air Adapter Fittings

Racetronix wastegates are perfect for helping you regulate your boost levels more precisely in high power applications thereby reducing the chance of over-boosting and damaging your turbocharged engine.
