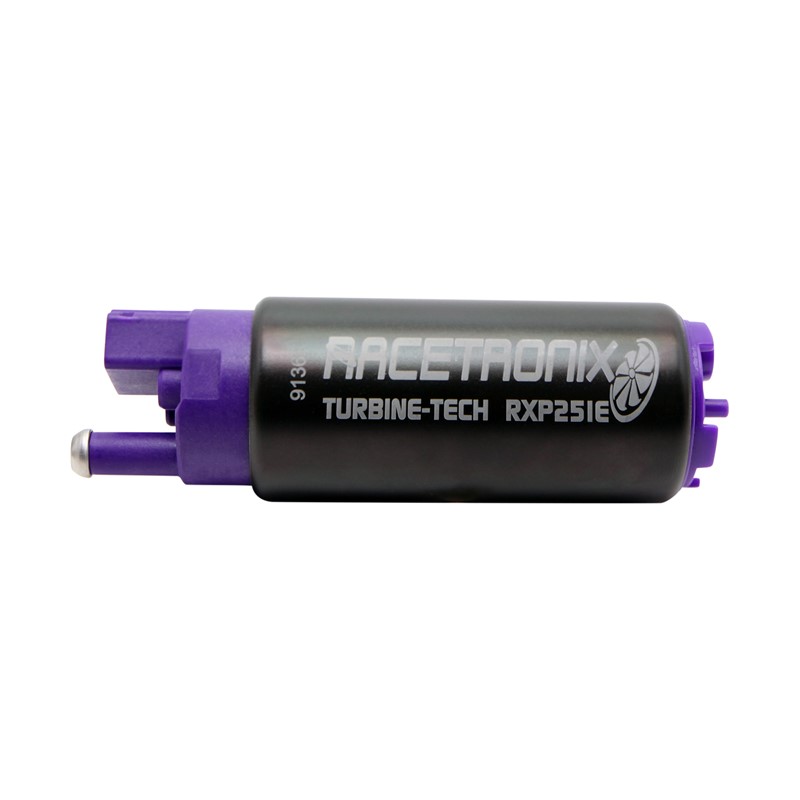

255LPH Fuel Pump, High Pressure/Volume E85

FEATURES:

1. New 100% Ethanol compatible
2. 255 LPH+ (67 US GPH) @ 43 PSI @ 13.5V (min) (275LPH nominal)
3. In-tank use only / submersible design
4. Reliable and quiet turbine impeller
5. Can be used with EFI or carbureted applications
6. May be used in pulse modulated systems (PWM
7. 11mm in-line inlet design. Same fitment as Walbro GSS341, GSS315, GSS278, Aeromotive 11141
8. Each pump individually tested
9. Integral check-valve
10. Over-pressure safety bypass valve

MECHANICAL SPECS:

1. Weight: 355 grams / 0.783 lbs
2. Diameter: 38mm / 1.54" O.D.
3. Body: Black-plated steel with laser etching
4. Inlet: 11mm / 0.866" OD (non-tapered)
5. Outlet: 8mm / 0.315" (with barb)
6. PRV Activation: 100PSI nominal
7. Impeller design: Single-scroll hard-anodized aluminum turbine

ELECTRICAL SPECS:

1. Recommended operating voltage: 13.5 volts DC
2. Minimum operating voltage: 6 volts DC
3. Max operating voltage: 18 volts DC
4. Current draw @ 43.5PSI: 8 amps (13.5VDC)
5. Current draw @ 58.0PSI: 10 amps (13.5VDC)
6. Current draw @ 80.0PSI: 12 amps (13.5VDC)

NOTES:

REQUIRES UPGRADED IN-TANK AND EXTERNAL WIRING FOR PROPER OPERATION.

THIS PUMP IS SOLD WITHOUT ANY WIRING, FILTERS OR MOUNTS. SELECT THE PARTS YOU REQUIRE IN OUR WEB STORE BASED ON YOUR APPLICATION
