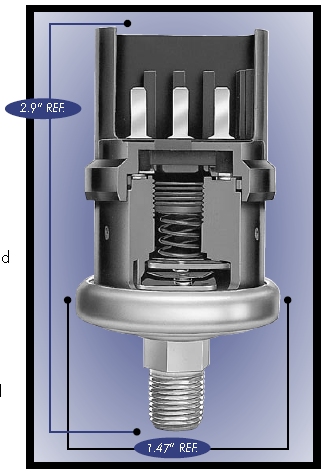

The HPS- Series switch is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features a Kapton diaphragm for compatibility with a wide variety of fluids, and a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity.
Type: Direct action blade contact
Normally open contacts (N.O.)*
* Contact made when switch reaches set pressure
Contacts: Silver alloy, gold plated
Resistive: 15 AMP- 6 VDC, 8 AMP- 12 VDC, 4 AMP- 24 VDC
Inductive: 1 AMP- 120 VAC, 0.5 AMP- 240 VAC
Diaphragm: Polyimide film
Temperature Range: -40° F to + 250° F
Connector: 1/8 -27 NPT male thread
Base: Plated Steel
NOTE: OPERATING MEDIA (PRESSURE SWITCH)
The pressure switch is designed to operate with air, motor oils, transmission oils, jet fuels and other similar hydrocarbon media.
THIS PRESSURE SWITCH REQUIRES A 2-POSITION DELPHI 280 SERIES METRI-PACK CONNECTOR FOR ITS ELECTRICAL CONNECTION SHOWN ON THIS PAGE.(RCS-007 not included)
